Features
The PID microcomputer control dual display screens simultaneously indicate the actual temperature, with a control accuracy of ± 1 degree. It features automatic or manual function Settings, output power values, etc. Each group is equipped with bidirectional high-speed fuse protection and an automatic preheating and dehumidification function to ensure a longer heating life. The input form (K/J type) offers precise temperature control and is easy to use.

Advantage

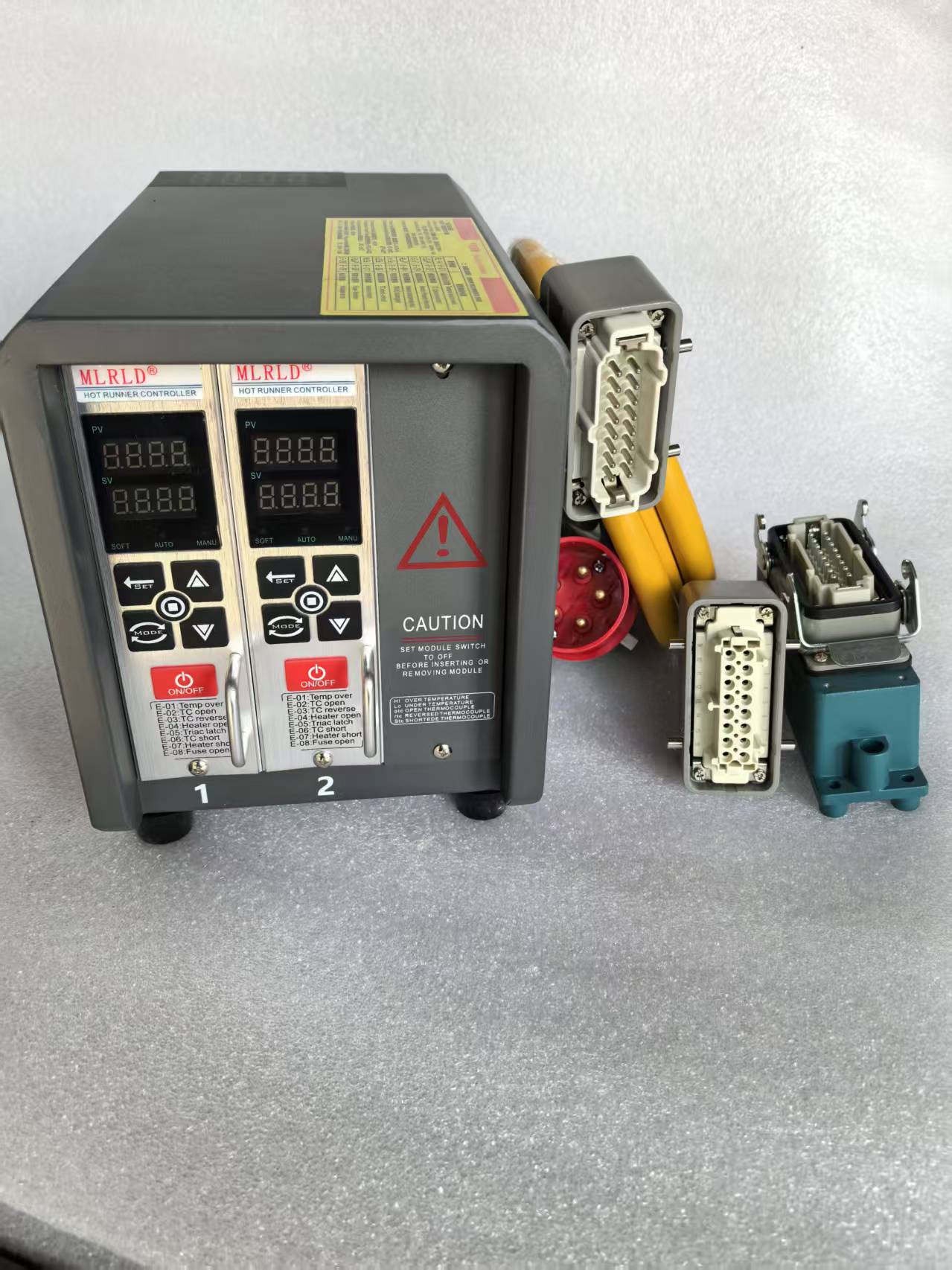

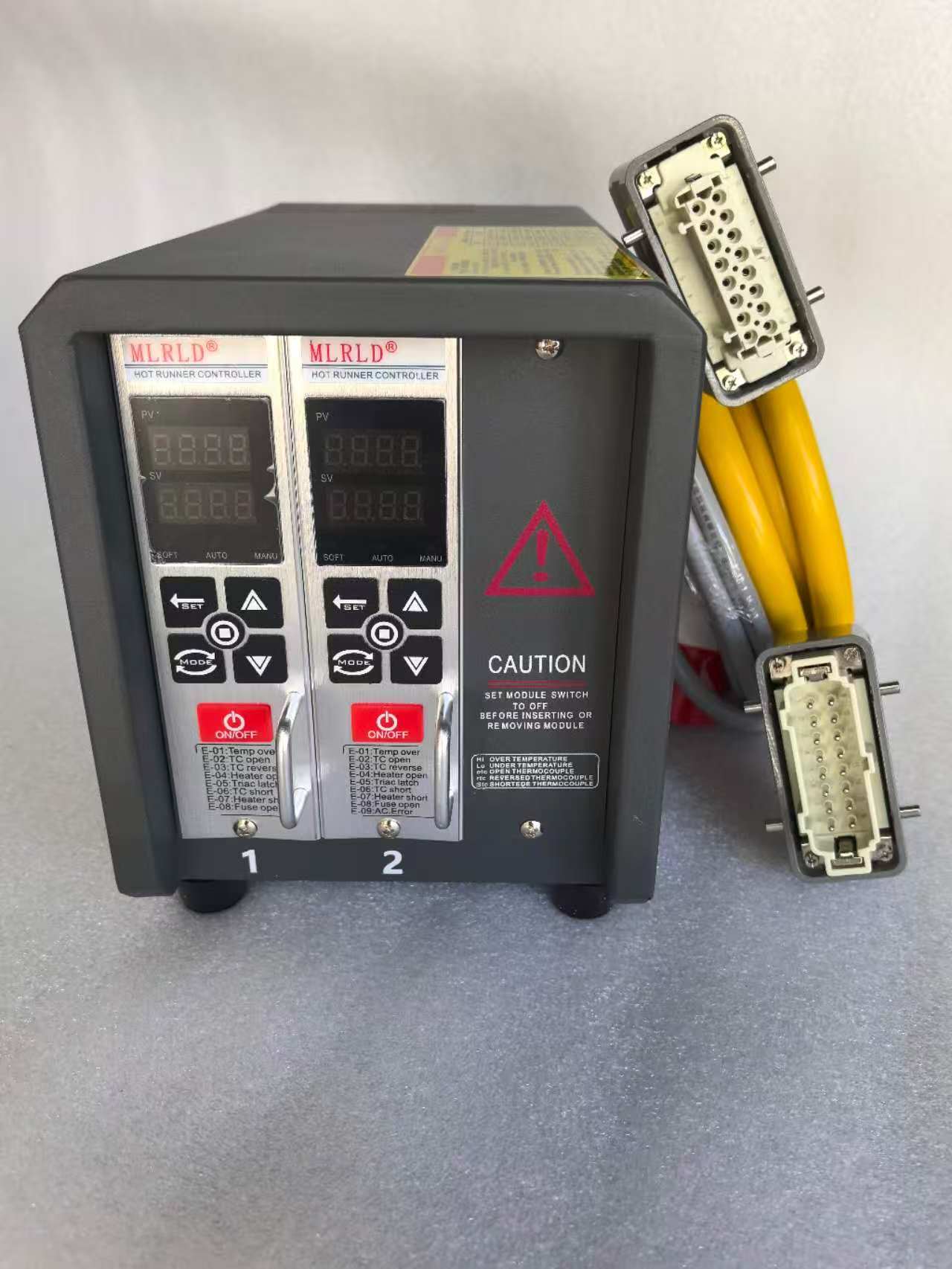

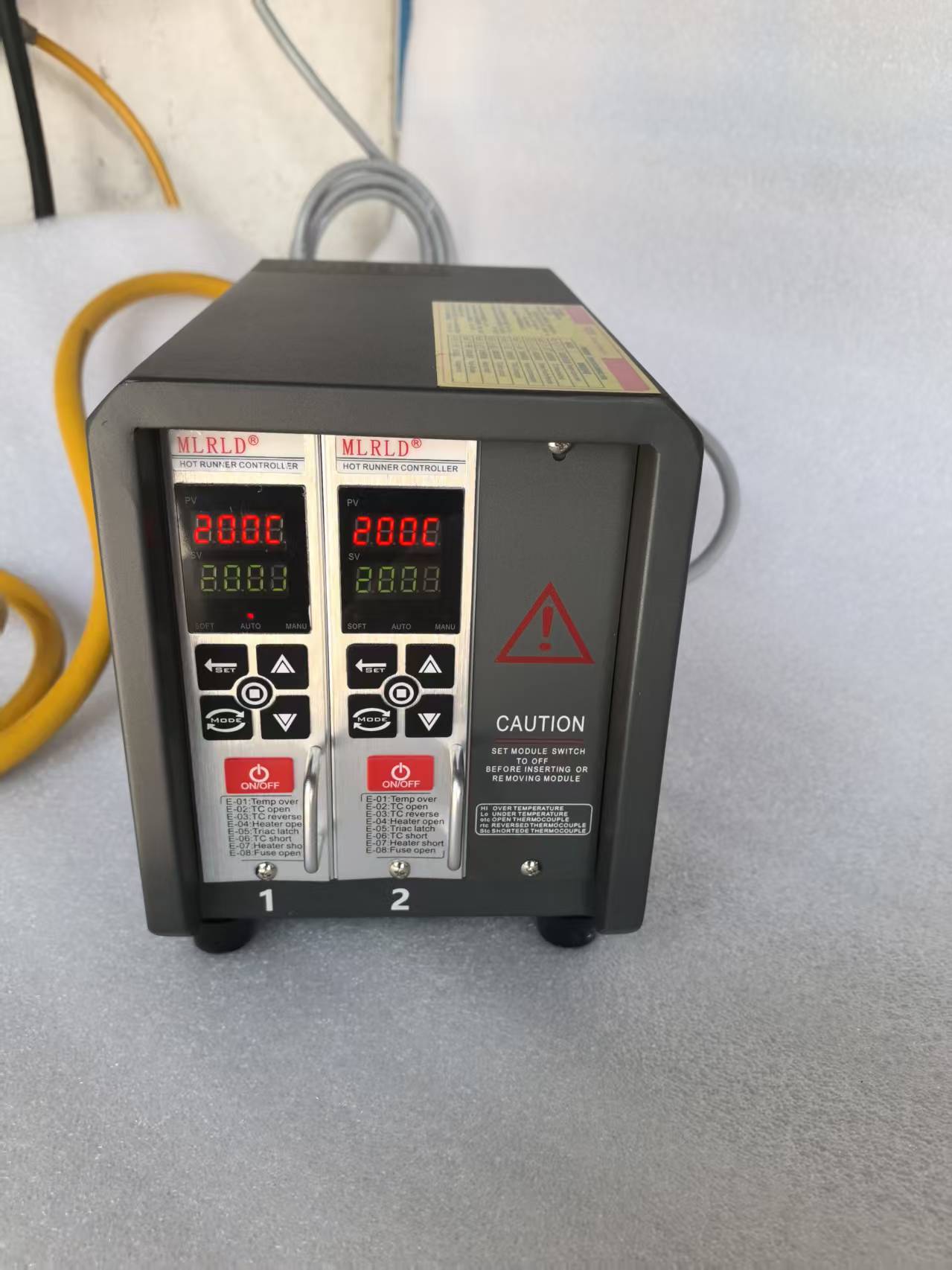

The ML-15A temperature controller is a card-inserting type precise temperature control system for hot runners. It is a high-performance temperature controller that has been carefully developed and improved by combining the current precise temperature control requirements of hot runners and the convenient interchangeability features commonly used abroad. Its card-inserting type is also convenient to use. Maintenance, repair, etc. Personnel are simple and easy to use.

The ML-15A temperature controller is controlled by a microcomputer PID algorithm. During operation, users can view output percentage, loop current value, PID control parameters, etc. It features a soft start function, allowing manual setting of PID parameters and manual adjustment of output percentage. It also has an accurate self-tuning function for PID parameters. It features precise temperature control, no overshoot during heating, and simple and easy-to-understand operation during the temperature control process. Operating ambient temperature: 0°C----55°C temperature sensor type: J type or K type thermocouple temperature control range: 0°C----450°C temperature control accuracy: ±1°C control output form: thyristor (Triac) output maximum output: AC220V/15A 3600W input power supply AC200----240V  50/60Hz

Temperature control is of great significance to hot runner systems. Pid-controlled temperature controllers can provide precise temperature difference responses and feedback actions, allowing users to control temperature changes at will. In terms of external troubleshooting, our company's temperature control panel provides a fault code display, thereby saving troubleshooting time.
ML15A Feature Description
1. PID microcomputer control dual display screens simultaneously indicate the current temperature, with a control accuracy of ± 1 degree.2 The automatic or manual function Settings, output power values, etc., can all be directly controlled and indicated by the buttons on the temperature control meter. 3 Each point is equipped with bidirectional high-speed fuse protection and an indicator light will be on when the fuse fails. 4. Automatic preheating and dehumidification function to ensure longer heating life.5. The box structure has high strength. The electromechanical components are imported from Germany, France and Japan, all of which comply with safety regulations and certification standards. 6 Input form (K/J type)

Product Introduction

Temperature control is of great significance to hot runner systems. Pid-controlled temperature controllers can provide precise temperature difference responses and feedback actions, allowing users to control temperature changes at will. In terms of external troubleshooting, our company's temperature control panel provides a fault code display, thereby saving troubleshooting time.
Temperature
The ML-15A temperature controller is based on the advanced foreign hot runner temperature control technology and combines the current heat
This is a high-performance temperature controller that has been meticulously developed and improved, featuring the characteristics of channel temperature control. It adopts the microcomputer PID algorithm
Control: During operation, it can view output percentage, loop current value, PID control parameters, etc., and has a soft start function
Yes, it can manually set PID parameters and manually adjust the output percentage. It has an accurate PID parameter self-tuning function during temperature control
It features precise temperature control, no overshoot during heating, and simple and easy-to-understand operation.
Operating ambient temperature: 0°C----55°C
Temperature sensor type: J-type or K-type thermocouple
Temperature control range: 0°C----537°C
Temperature control accuracy: ±1°C
Control output form: Thyristor (Triac) output
Maximum output: AC220V/15A 3600W
Input power supply: AC200----240V 50/60Hz
Wiring instructions
This temperature controller adopts the commonly used gold finger insertion method.
1 grounded by AC220V power 4, 5, 2 and 3 heating element
6. Do not connect 7 and 8 to the temperature-sensing thermocouple

The ML-15A-01 single-point temperature controller is controlled by a microcomputer PID algorithm. During operation, users can view output percentage, loop current value, PID control parameters, etc. It features a soft start function, allowing manual setting of PID parameters and manual adjustment of output percentage. It also has an accurate self-tuning function for PID parameters. It features precise temperature control, no overshoot during heating, and simple and easy-to-understand operation during the temperature control process. Operating ambient temperature: 0°C----55°C temperature sensor type: J type or K type thermocouple temperature control range: 0°C----537°C temperature control accuracy: ±1°C control output form: thyristor (Triac) output maximum output: AC220V/15A 3600W input power supply AC200----240V  50/60Hz

The temperature sensing wire is used to connect the PID microcomputer temperature controller to sense the temperature of the hot flow channel, with a control accuracy of ± 1 degree. J type thermocouple (J type)
